Lumens. LC300 3G 4-Channel Recorder and Streaming Media Processor with…
PROCESSOR Lumens. LC300 3G 4-Channel Recorder and Streaming Media Processor with…
본문
- Supports 4 video and 7 audio channels
- HDMI, USB, SDI, IP, NDI High Bandwidth, NDI HX2 and NDI HX3 inputs
- HDMI, USB, IP and NDI High Bandwidth outputs
- USB Output (UVC/UAC) for use in video conferencing
- Dual Ethernet ports for WAN and LAN integration
| Description | Specification |
|---|---|
| Video Input Number / Signal | HDMI 2.0 x 1 HDMI 1.3 x 3 3G-SDI x 1 |
| Connection | Female HDMI type-A / 3G-SDI |
| Resolution Range | HDMI Input 1: 720p~2160p 60fps, 1920x1200(RB) HDMI Input 2~4 and 3G-SDI: 720p~1080p 60fps |
| IP Source / USB Camera | Lumens IP PTZ / Box Camera NDI High Bandwidth, NDI HX2, NDI HX3 Source RTSP Source (HEVC / H.264) USB Camera (MJPEG 1080p 30fps) |
| Video Compression | HEVC / H.264 / AVC 4:2:0 8bit color Encoding Profile: High, Main, Baseline |

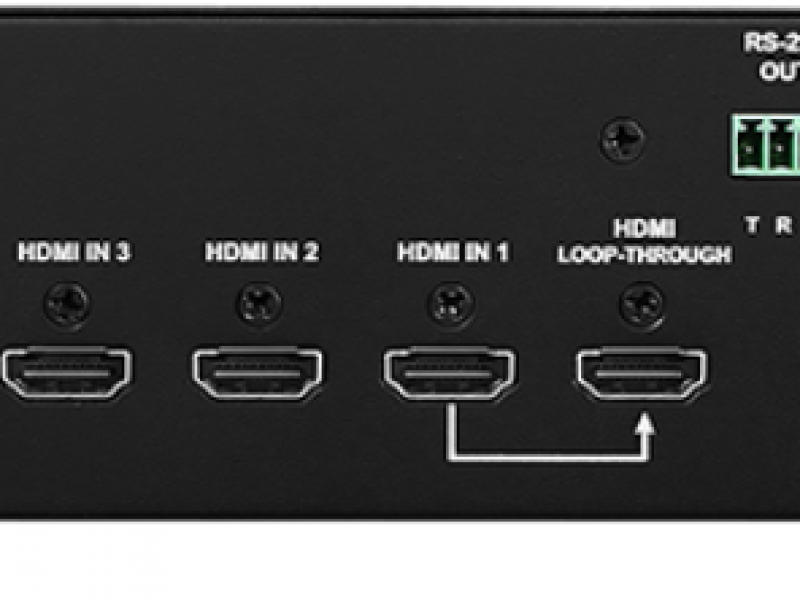

| Video Output Number / Signal | HDMI x2 HDMI Loop-through x1 UVC (up to 1080p) x1 |
| Scaled Resolution | 2160p / 1080p |
| Storage | 4TB HDD / USB Storage |
| File Type | H.264 / HEVC in an MP4 container, JPEG |
| Dimensions: (WxHxD) / Weight | 422 x 65.5 x 215.5 mm/ 3.5 Kg |
