Lumens. LC300S - 12G CaptureVision System
PROCESSOR Lumens. LC300S - 12G CaptureVision System
본문

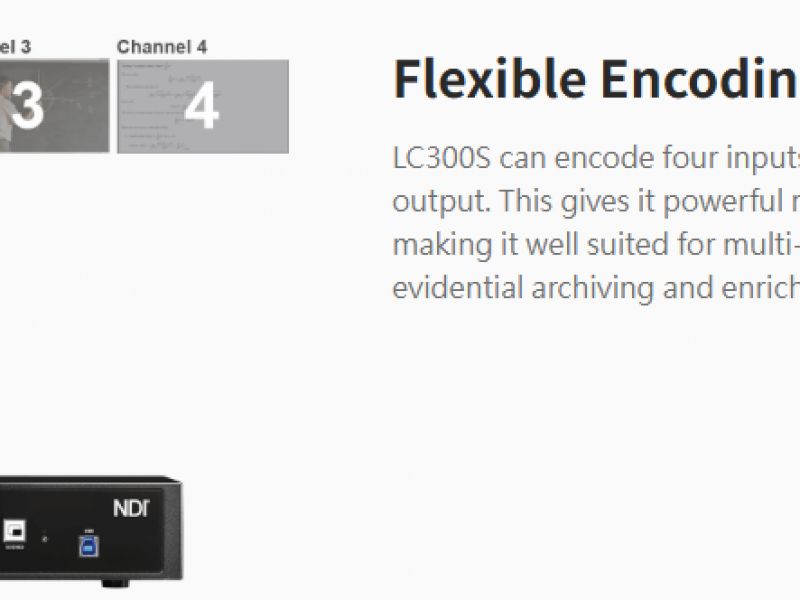

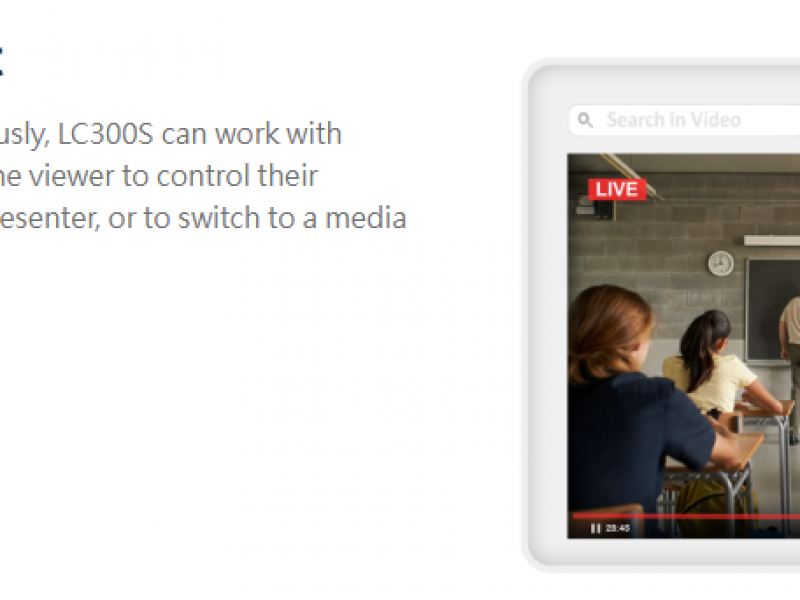

- 4-Channel Recorder and Streaming

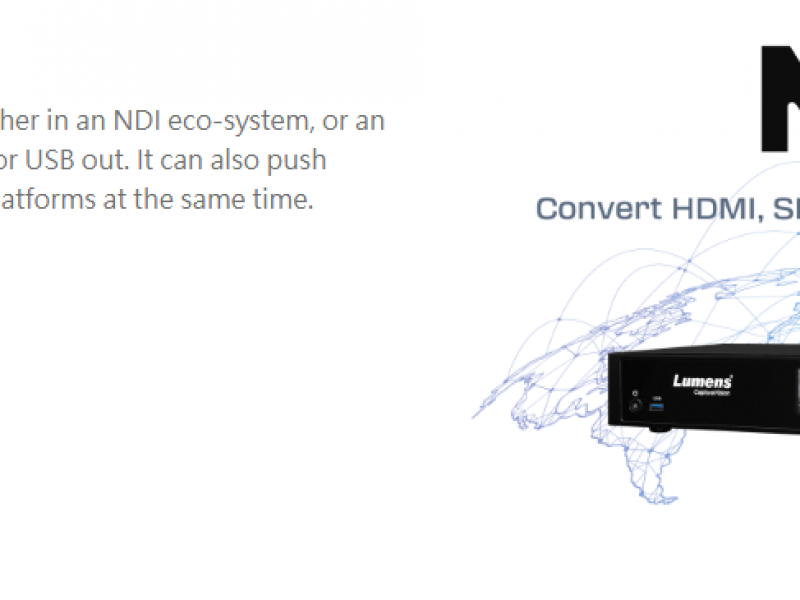

- Media Processor with UltraHD , NDI and 12G-SDI
| Description | Specification |
|---|---|
| Video Input Number / Signal | HDMI 2.0 x1 HDMI 1.3 x3 3G-SDI x1 12G-SDI x1 |
| Connection | Female HDMI type-A / 3G-SDI /12G-SDI |
| Resolution Range | HDMI Input 1: 720p~2160p 60fps, 1920x1200(RB) HDMI Input 2~4 and 3G-SDI: 720p~1080p 60fps 12G-SDI: 720p~2160p 60fps |
| IP Source / USB Camera | Lumens IP PTZ / Box Camera NDI High Bandwidth, NDI HX2 and NDI HX3 Source RTSP Source (HEVC(H.265) / H.264), SRT USB Camera (MJPEG 1080p 30fps) |
| Video Compression | HEVC (H.265) / H.264 / AVC 4:2:0 8bit color Encoding Profile: High, Main, Baseline |

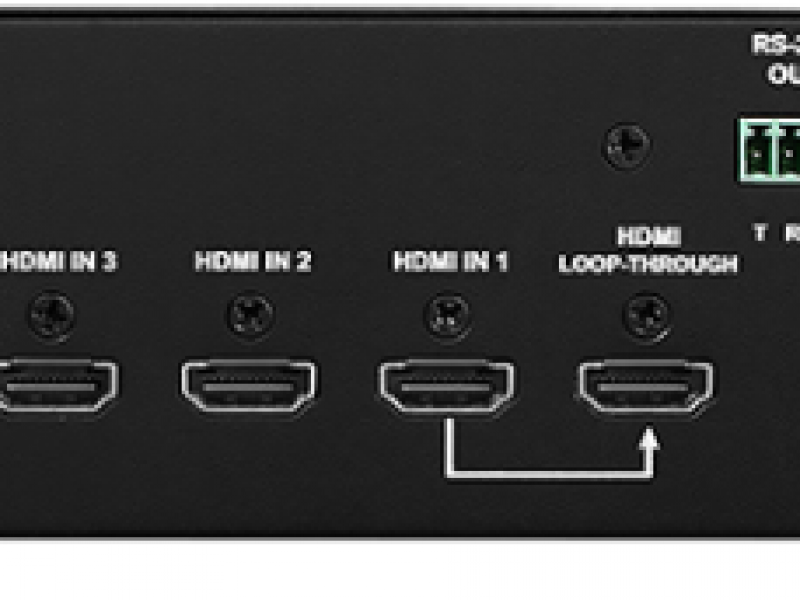

| Video Output Number / Signal | HDMI x2 HDMI Loop-through x1 12G-SDI Loop-through x1 UVC(up to 1080p) x1 |
| Resolution | 2160p / 1080p / 720p / 480p / 360p |
| Storage | Internal 4TB / External USB |
| Frame Rate | Max. 60 fps |
| Dimensions: (WxHxD) / Weight | 422 x 215.5 x 65.5 mm / 3.5kg |
